Beam Trusses 003

Beam Trusses 003

Beam Trusses 003

Model Info; - Modeled in 3ds Max 2012 - Modular - All Geometry Named Appropriately - 24 Modular Pieces. - Modeled in Real World Scale Overall Width : 11 7/16” (290mm) Outer Diameter Tubing : 2” (50mm) Diagonal Bracing : 3/4” (20mm) Wall Thickness : 0.08” (2mm)

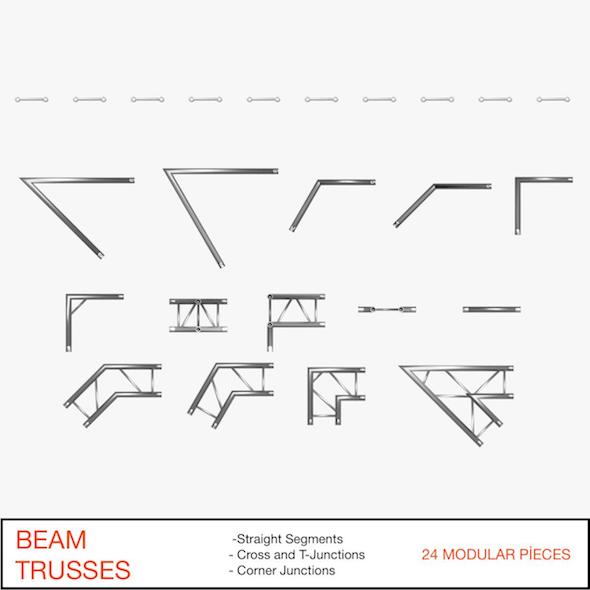

Beam Truss Standard: 24 object

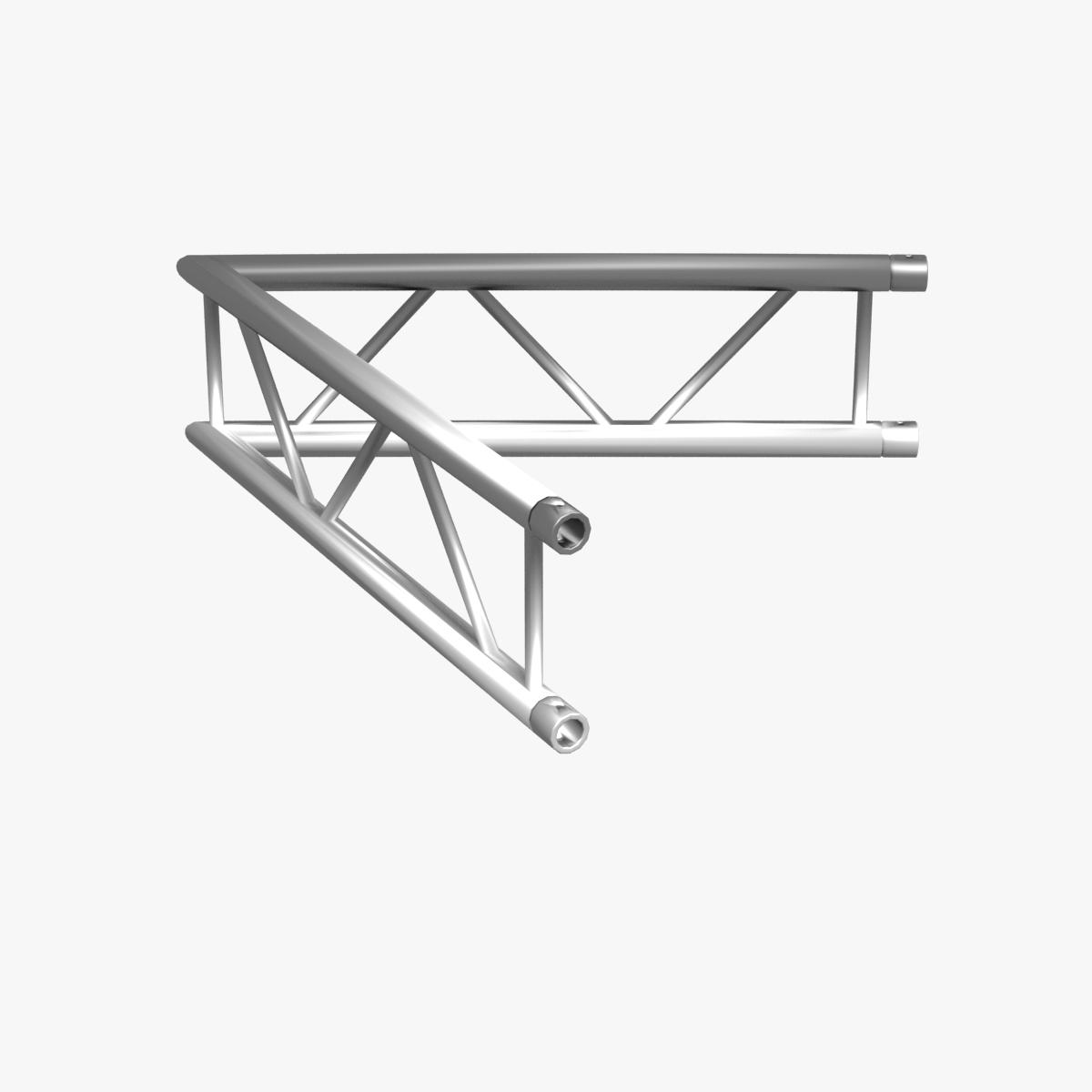

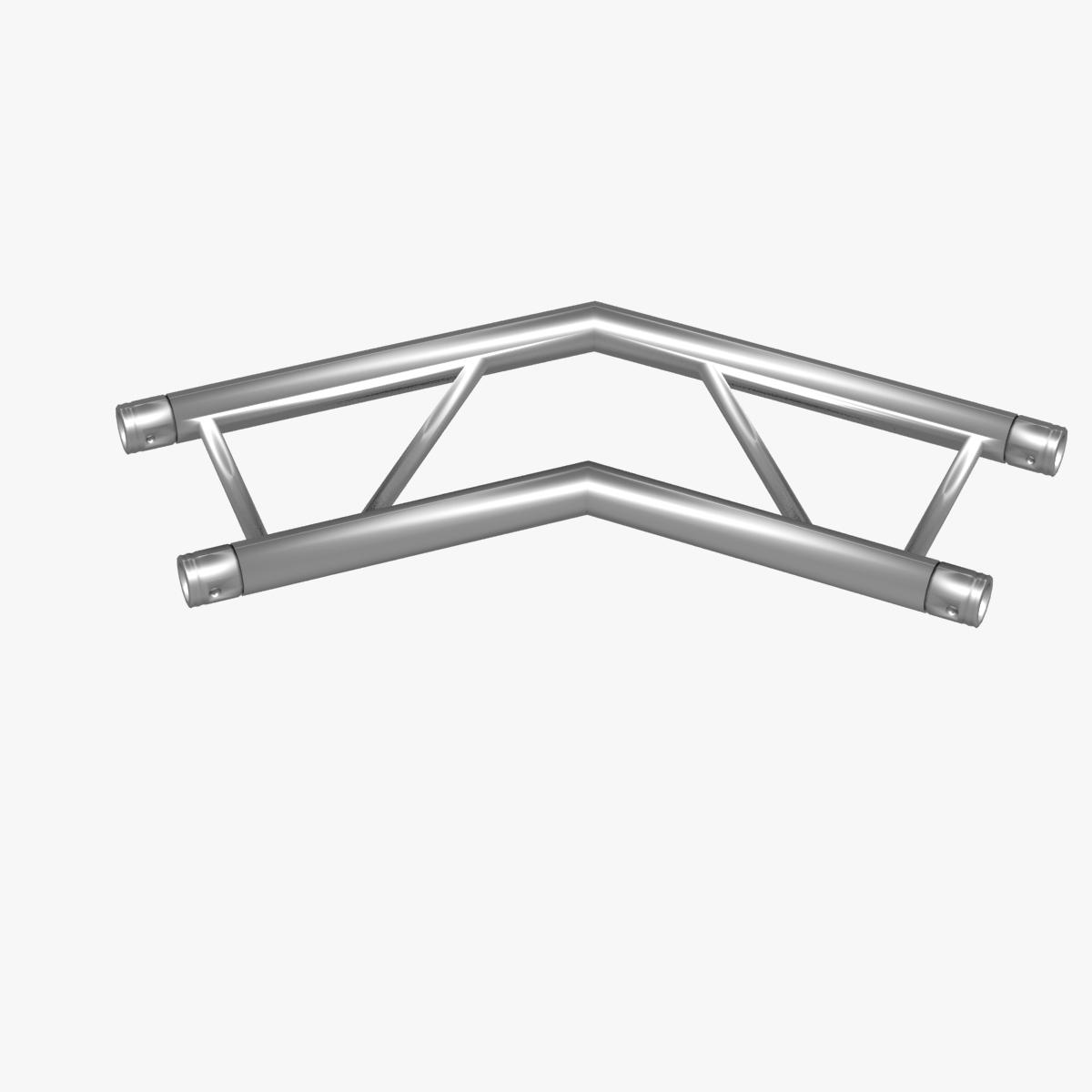

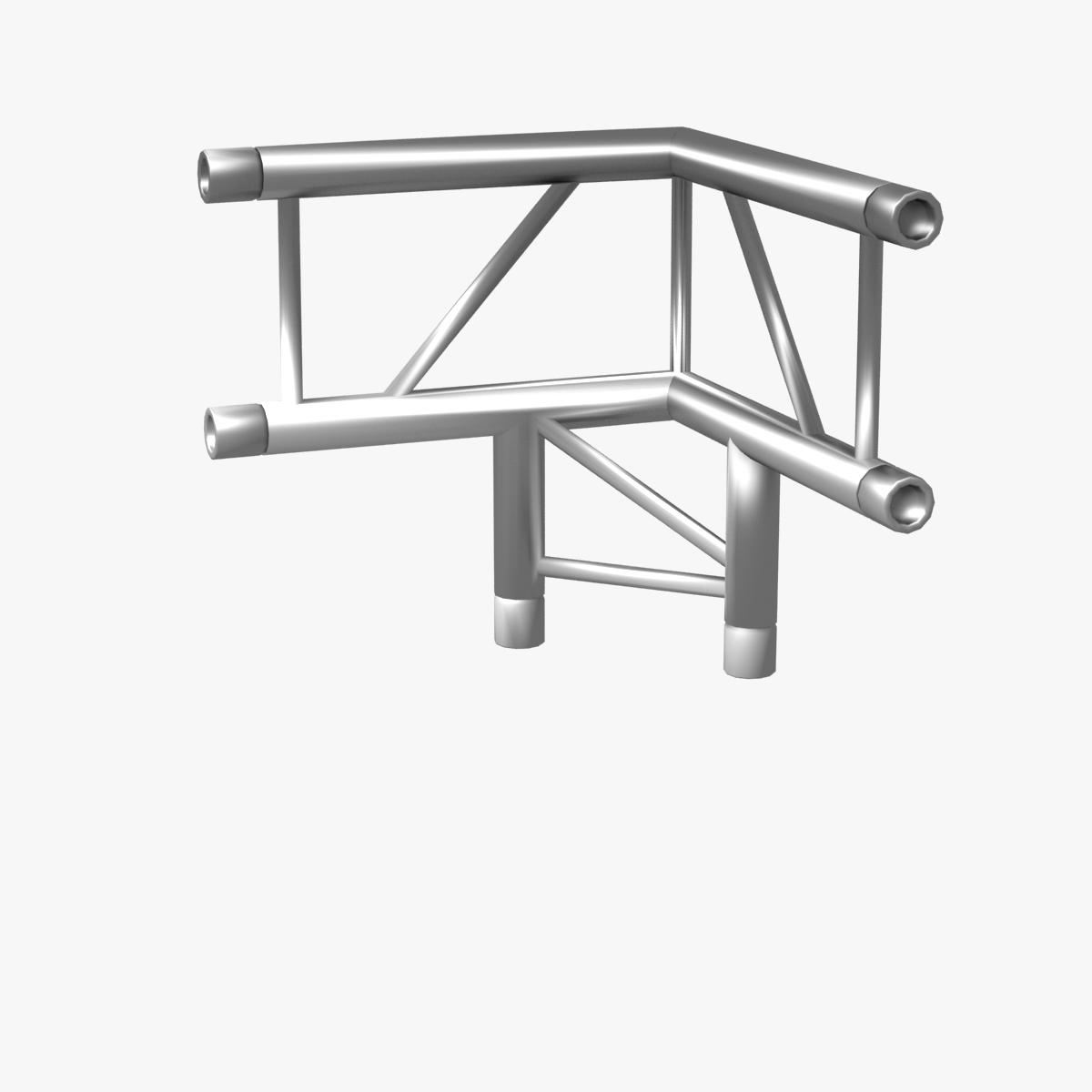

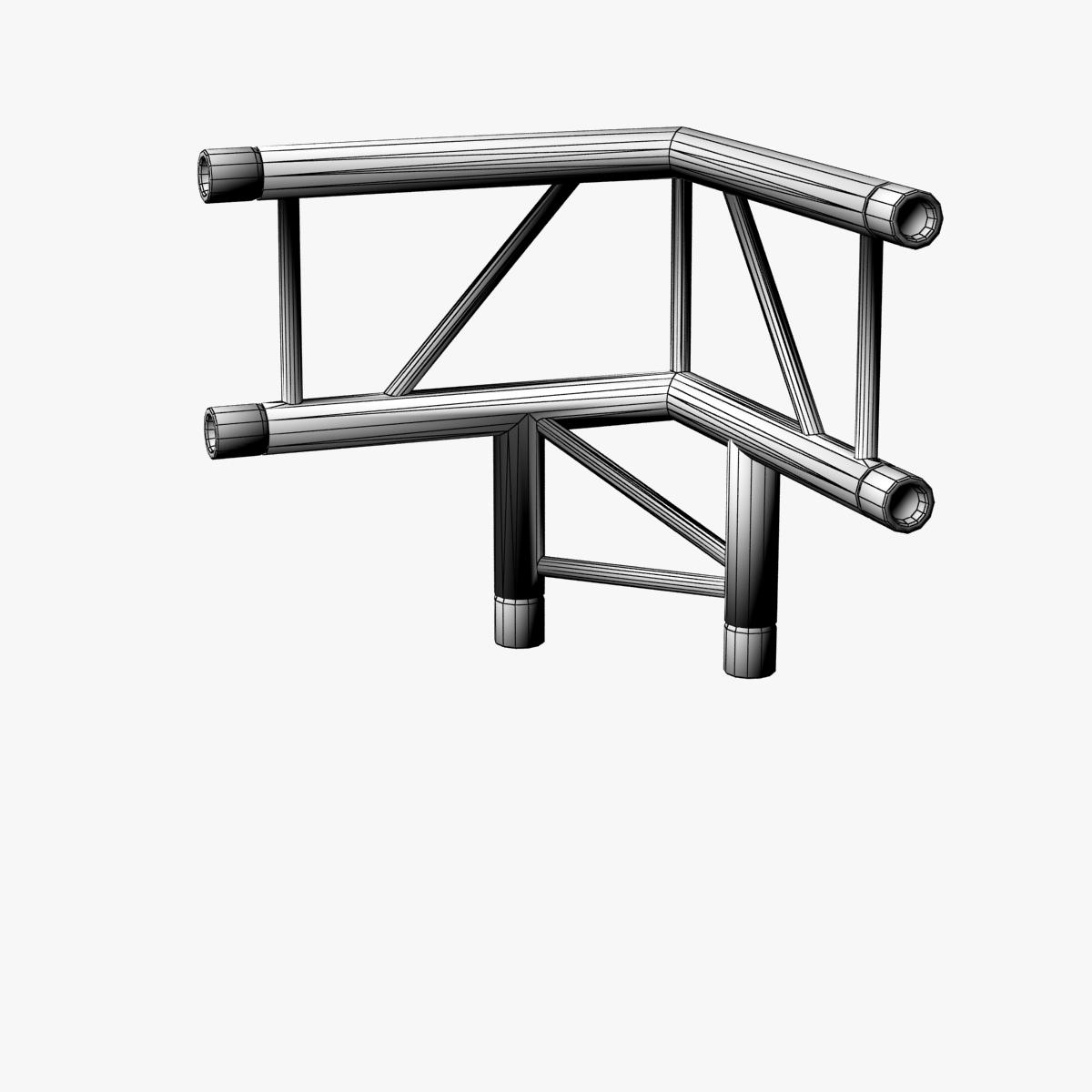

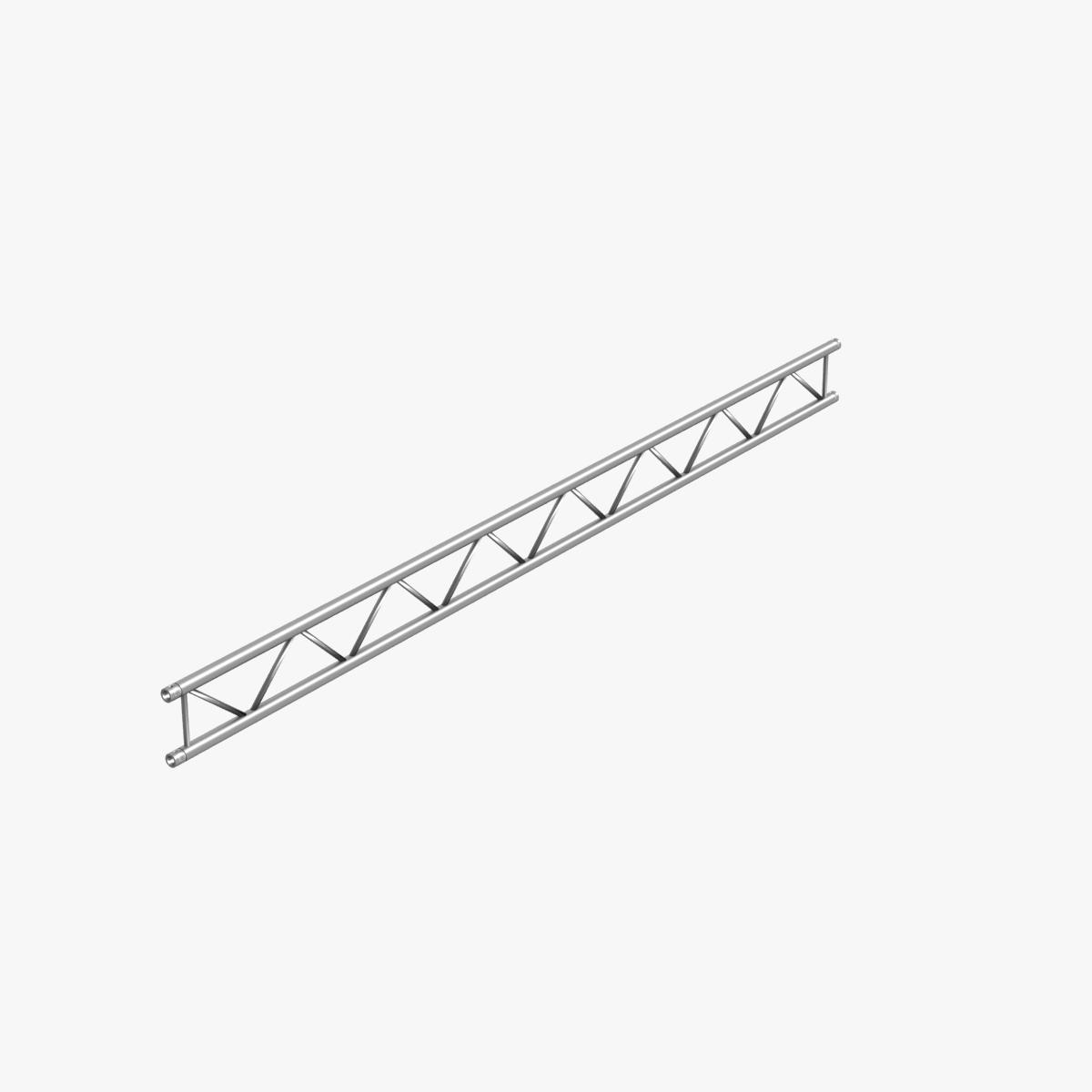

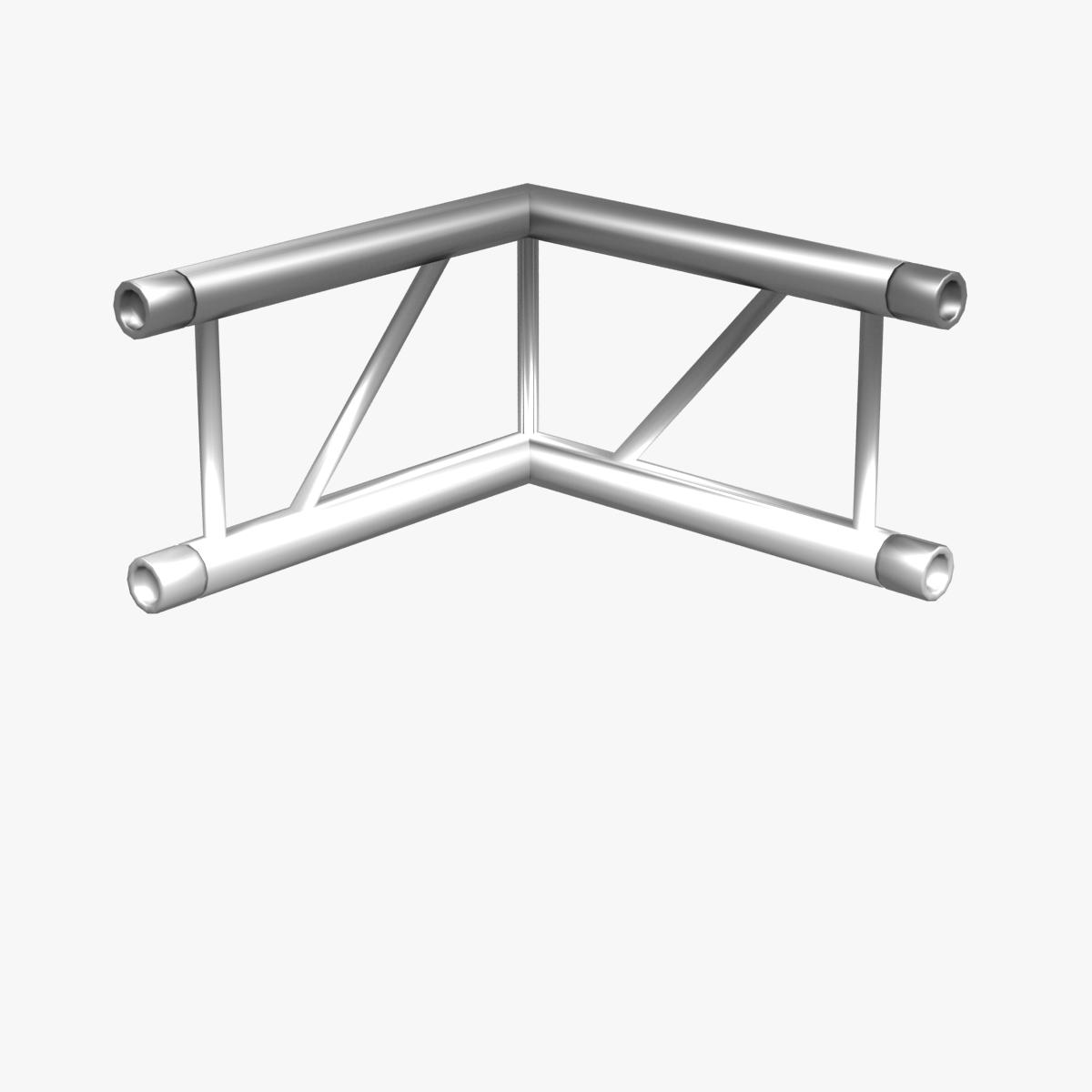

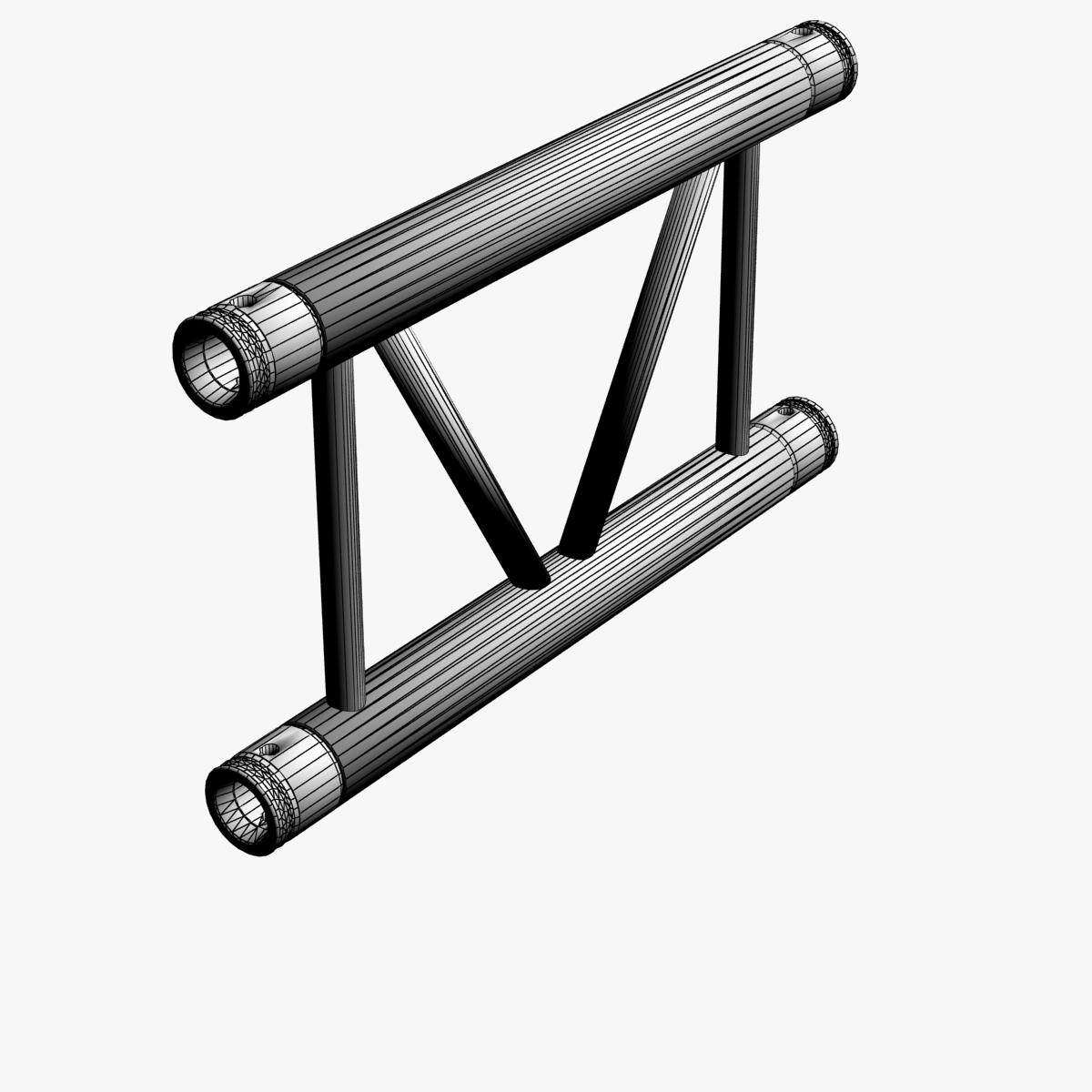

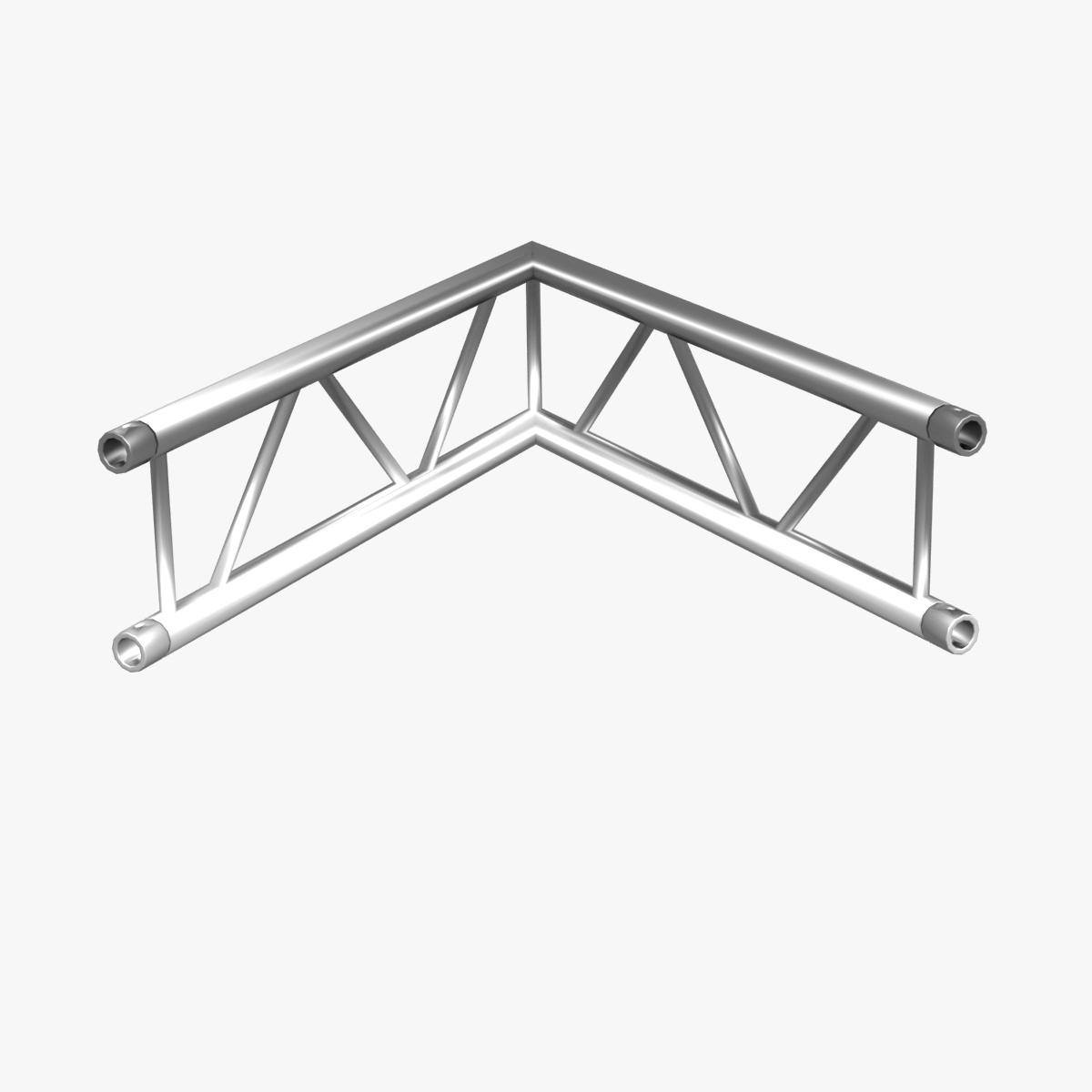

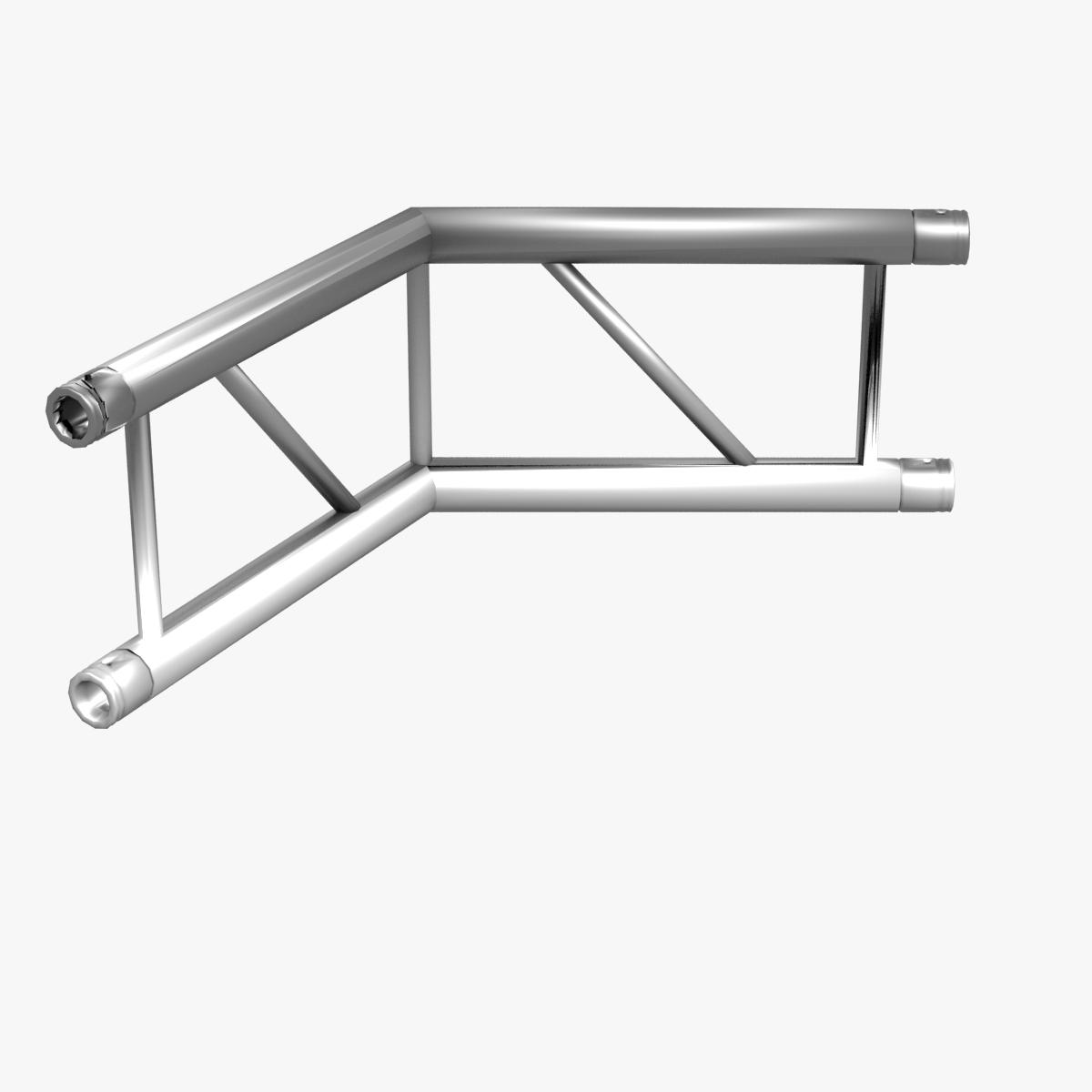

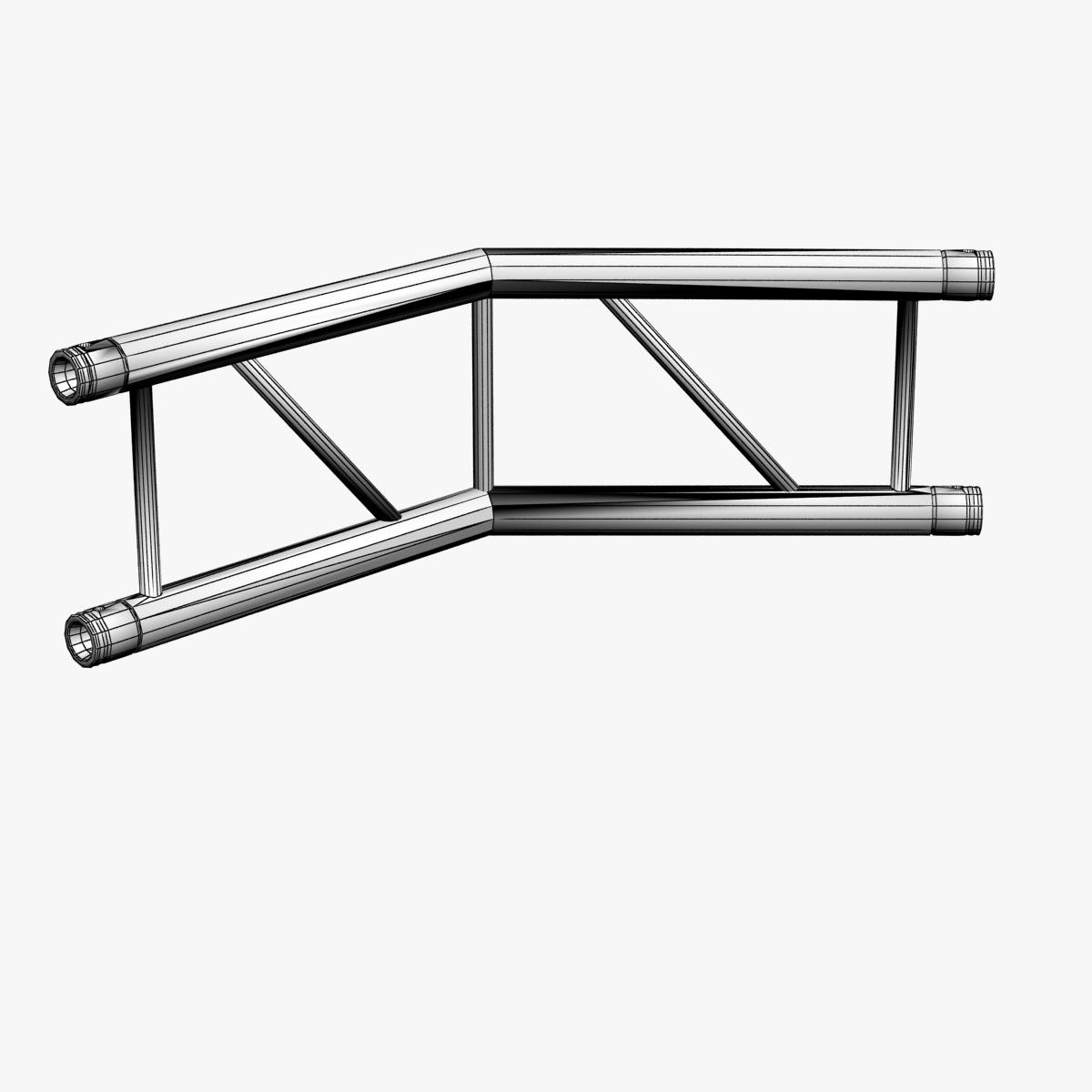

- Straight Segments - Cross and T-Junctions - Corner Junctions

Specifications; - Plugins Used: V-Ray - Geometry: Polygonal - Polygons: 97283 - Vertices: 48188

File Formats Available; MAX, 3DS, OBJ, FBX, DAE, DXF, C4D

This a Collection of Collections Other collection ID’s are;

Square Trusses Square Truss Standard: 24 objects Mini Square Truss: 7 objects Light Duty Square Truss: 9 objects Big Square Truss: 10 objects

Triangular Trusses Triangular Truss Standard: 41 objects Mini Triangular Truss: 14 objects

Beam Truss Standard: 24 objects

For questions and requests, please send us mail. Our other models, click the user name to see the full gallery.
